Monel Grease Fittings
Monel Grease Fittings withstand the most severe corrosive environments. Monel is a nickel/copper alloy that is highly resistant to corrosion. Monel grease fittings offer greater corrosion resistance than stainless steel. Monel grease fittings are also referred to as Monel zerk fittings, Monel lubrication fittings, or a Monel zerk.
 |
||||||||
| MONEL GREASE FITTINGS * MONEL GREASE FITTINGS * MONEL GREASE FITTINGS * MONEL GREASE FITTINGS * MONEL FITTINGS | ||||||||

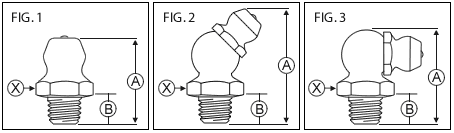

| SAE Number | Grease Fitting Description | FIG |
A |
B |
X |
Alemite
# |
Lincoln
# |
|

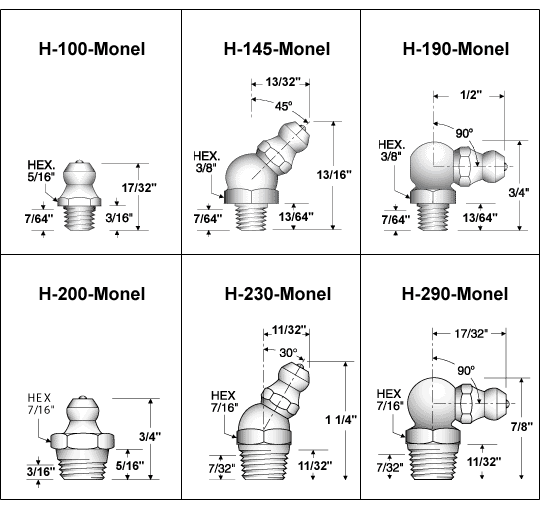

| H-100-MONEL | 1/4"-28 SAE STRAIGHT | 1 |
17/32" |
3/16" |
5/16" |
1966-B |
N/A |
|
| H-145-MONEL | 1/4"-28 SAE 45° | 2 |
13/16" |
13/64" |
5/8" |
1968-B |
N/A |
|
| H-190-MONEL | 1/4"-28 SAE 90 DEGREE | 3 |
3/4" |
13/64" |
3/8" |
1969-B |
N/A |
|
| H-200-MONEL | 1/8"-PTF STRAIGHT | 1 |
3/4" |
5/16" |
7/16" |
1961-B |
N/A |
|
| H-200-C-MONEL | 1/8"-PTF STRAIGHT SHORT | 1 |
5/8" |
9/32" |
7/16" |
1962-B |
N/A |
|
| H-230-MONEL | 1/8"-PTF 30 DEGREE | 2 |
1-1/4" |
11/32" |
7/16" |
1921-B |
N/A |
|
| H-267-MONEL | 1/8"-PTF 67 1/2 DEGREE | 2 |
61/64" |
11/32" |
7/16" |
1922-B |
N/A |
|
| H-290-MONEL | 1/8"-PTF 90 DEGREE | 3 |
7/8" |
11/32" |
7/16" |
1923-B |
N/A |
|
