Retaining Ring Kit / RRK-INI Ring Specs

Listed below are ring, groove, and other specifications for every retaining ring included in SAE Products internal retaining ring kit part number RRK-INI. Display units are in inches.

Click here to go back to retaining ring kits

RETAINING RING KITS

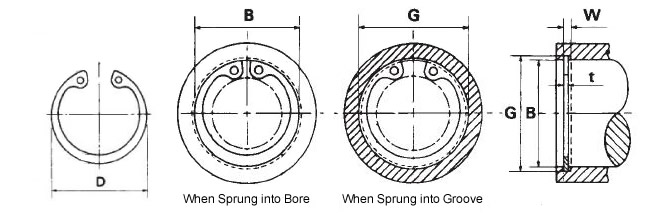

	Quantity In Kit	Application Diameter (B) [in.]	Groove Diameter (G) [in.]	Groove Width (W) [in.]	Groove Depth [in.]	Ring Diameter (D) [in.]	Ring Thickness (t) [in.]
	(50)	0.250	0.268	0.020	0.009	0.280	0.015
	(50)	0.312	0.330	0.020	0.009	0.346	0.015
	(50)	0.375	0.397	0.029	0.011	0.415	0.025
	(50)	0.438	0.461	0.029	0.012	0.482	0.025
	(50)	0.500	0.530	0.039	0.015	0.548	0.035
	(50)	0.562	0.596	0.039	0.017	0.620	0.035
	(25)	0.625	0.665	0.039	0.020	0.694	0.035
	(25)	0.688	0.732	0.039	0.022	0.763	0.035
	(25)	0.750	0.796	0.039	0.023	0.831	0.035
	(20)	0.812	0.862	0.046	0.025	0.901	0.042
	(20)	0.875	0.931	0.046	0.028	0.971	0.042
	(20)	0.938	1.000	0.046	0.031	1.041	0.042
	(10)	1.000	1.066	0.046	0.033	1.111	0.042
	(6)	1.062	1.130	0.056	0.034	1.180	0.050
	(6)	1.125	1.197	0.056	0.036	1.249	0.050
	(6)	1.250	1.330	0.056	0.040	1.388	0.050
	(6)	1.312	1.396	0.056	0.042	1.456	0.050
	(6)	1.375	1.461	0.056	0.043	1.526	0.050
