Thread Forming Grease Fittings
Thread Forming Grease Fittings also referred to as spin drive grease fittings are used to save tapping cost and have special tapered drive threads that reshape the material in an untapped hole to provide a leakproof seal. Spinning these fittings into an untapped hole provides the most effective installation, but they may also be driven directly into an untapped hole. Thread Forming Fittings may be replaced by standard fittings that have the same thread size.
|
||||||||
| 1/4"-28 THREAD FORMING GREASE FITTINGS * 1/4"-28 THREAD FORMING GREASE FITTINGS * 1/4"-28 THREAD FORMING FITTINGS | ||||||||
| SAE Number |
Grease Fitting Description
|

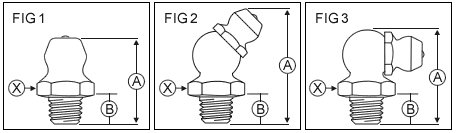

FIG
|
A
|
B
|
X
|
Alemite
#
|
Lincoln
#
|
|
| H-100-GM | 1/4"-28 STRAIGHT |
1
|
9/16"
|
13/64"
|
5/16"
|
3038-B
|
205010
|
|
| H-100-GMSB | 1/4"-28 STRAIGHT , NO BALL |
1
|
9/16"
|
13/64"
|
5/16"
|
N/A
|
N/A
|
|
| H-100-C-GM | 1/4"-28 STRAIGHT SHORT |
1
|
.51
|
.12
|
9/32"
|
369582
|
N/A
|
|
| H-100-LMA-GM | 1/4"-28, STRAIGHT MED. LONG |
1
|
.97
|
.21
|
5/16"
|
369584
|
N/A
|
|
| H-100-GMRL | 1/4"-28 LONG |
1
|
5/16"
|
3/16"
|
9/32"
|
N/A
|
N/A
|
|
| H-100-GMPL | 1/4"-28 PLUG |
1
|
5/16"
|
3/16"
|
9/32"
|
328435
|
700337
|
|
| H-145-GM | 1/4"-28 45 DEGREE |
2
|
13/16"
|
3/16"
|
3/8"
|
3053-B
|
205210
|
|
| H-190-GM | 1/4"-28 90 DEGREE |
3
|
23/32"
|
13/64"
|
3/8"
|
3054-B
|
205410
|
|
|
||||||||
| 1/8" PTF THREAD FORMING GREASE FITTINGS * 1/8" PTF THREAD FORMING GREASE FITTINGS * 1/8" PTF THREAD FORMING | ||||||||
| SAE Number |
Grease Fitting Description
|
FIG
|
A
|
B
|
X
|
Alemite
#
|
Lincoln
#
|
|
| H-200-GM | 1/8" PTF STRAIGHT |
1
|
5/8"
|
1/4"
|
7/16"
|
1720-B
|
205000
|
|
| H-200-LMA-GM | 1/8" PTF STRAIGHT MED. LONG |
1
|
.68
|
.21
|
7/16"
|
369579
|
N/A
|
|
| H-245-GM | 1/8" PTF 45 DEGREE |
2
|
27/32"
|
13/64"
|
7/16"
|
1724-B
|
5300
|
|
| H-265-GM | 1/8" PTF 65 DEGREE |
2
|
3/4"
|
13/64"
|
7/16"
|
1722-B
|
N/A
|
|
| H-290-GM | 1/8" PTF 90 DEGREE |
3
|
3/4"
|
13/64"
|
7/16"
|
1723-B
|
205400
|
|
|
||||||||
| 6MM THREAD FORMING GREASE FITTINGS * 6MM THREAD FORMING GREASE FITTINGS * 6MM THREAD FORMING FITTINGS | ||||||||
| SAE Number |
Grease Fitting Description
|
FIG
|
A
|
B
|
X
|
Alemite
#
|
Lincoln
#
|
|
| M6-1-GM | 6MM X 1MM / STRAIGHT |
1
|
15.0mm
|
5.5mm
|
7mm
|
N/A
|
N/A
|
|
| M6-45-GM | 6MM X 1MM / 45 DEGREE |
2
|
20.2mm
|
5.5mm
|
9mm
|
N/A
|
N/A
|
|
| M6-90-GM | 6MM X 1MM / 90 DEGREE |
3
|
18.0mm
|
5.5mm
|
9mm
|
N/A
|
N/A
|
|
|
||||||||
| 8MM THREAD FORMING GREASE FITTINGS * 8MM THREAD FORMING GREASE FITTINGS * 8MM THREAD FORMING FITTINGS | ||||||||
| SAE Number |
Grease Fitting Description
|
FIG
|
A
|
B
|
X
|
Alemite
#
|
Lincoln
#
|
|
| M8-1-GM | 8MM X 1MM / STRAIGHT |
1
|
15.0mm
|
5.5mm
|
9mm
|
N/A
|
N/A
|
|
| M8-45-GM | 8MM X 1MM / 45 DEGREE |
2
|
20.2mm
|
5.5mm
|
9mm
|
N/A
|
N/A
|
|
| M8-90-GM | 8MM X 1MM / 90 DEGREE |
3
|
18.0mm
|
5.5mm
|
9mm
|
N/A
|
N/A
|
|
|
||||||||
| 10MM THREAD FORMING GREASE FITTINGS * 10MM THREAD FORMING GREASE FITTINGS * 10MM THREAD FORMING FITTINGS | ||||||||
| SAE Number |
Grease Fitting Description
|
FIG
|
A
|
B
|
X
|
Alemite
#
|
Lincoln
#
|
|
| M10-1-GM | 10MM X 1MM / STRAIGHT |
1
|
15.0mm
|
5.5mm
|
11mm
|
N/A
|
N/A
|
|
| M10-1-GML | 10MM X 1MM / STRAIGHT |
1
|
18.0mm
|
8.0mm
|
11mm
|
N/A
|
N/A
|
|
| M10-45-GM | 10MM X 1MM / 45 DEGREE |
2
|
20.5mm
|
5.5mm
|
11mm
|
N/A
|
N/A
|
|
| M10-90-GM | 10MM X 1MM / 90 DEGREE |
3
|
18.0mm
|
5.5mm
|
11mm
|
N/A
|
N/A
|
|
|
||||||
| METRIC THREAD FORMING FLUSH TYPE GREASE FITTINGS * METRIC THREAD FORMING FLUSH TYPE GREASE FITTINGS | ||||||
| SAE Number | Description |
FIG
|
A
|
B
|
X
|
|
| M6-1-GMF | 6MM X 1MM THREAD FORMING FLUSH TYPE |
6
|
8.5mm
|
5.5mm
|
7mm
|
|
| M8-1-GMF | 8MM X 1MM THREAD FORMING FLUSH TYPE |
6
|
8.5mm
|
5.5mm
|
9mm
|
|
| M10-1-GMF | 10MM X 1MM THREAD FORMING FLUSH TYPE |
6
|
8.5mm
|
5.5mm
|
11mm
|
|
