Metric Grease Fittings




Metric Grease Fittings are available in both regular and stainless steel.  Metric Grease Fittings are also referred to as Metric Zerk Fittings, Metric Lubrication Fittings, Metric Hydraulic Fittings, and Metric Zerks.   Images and drawings of SAE Products metric grease fittings are available by clicking the SAE numbers below.

5 MM Grease Fittings
6 MM Grease Fittings
6 MM Thread Forming
7 MM Grease Fittings
8 MM Grease Fittings
8 MM Thread Forming
10 MM Grease Fittings
10 MM Thread Forming
12 MM Grease Fittings
16 MM Grease Fittings
Metric Standard Button Head
Metric Giant Button Head
Metric Drive Type Fittings
Metric Flush Type
Metric Thread Forming Flush
 Metric Plugs



5MM Grease Fittings
METRIC GREASE FITTINGS
         5MM GREASE FITTINGS * 5MM GREASE FITTINGS * 5MM GREASE FITTINGS * 5MM GREASE FITTINGS * 5MM GREASE FITTINGS
SAE Number
Grease Fitting Description

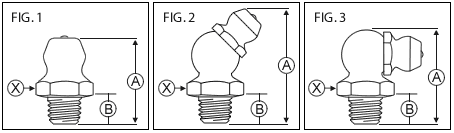

FIG.
A
B
X
Alemite
Lincoln
M5-8-1 5MM X .8MM / STRAIGHT
1
15.0mm
5.5mm
7mm
NA
NA
M5-8-1-SS 5MM X .8MM / STRAIGHT (STAINLESS)
1
15.0mm
5.5mm
7mm
NA
NA
M5-8-45 5MM X .8MM / 45 DEGREE
2
18.0mm
5.5mm
9mm
NA
NA
M5-8-90 5MM X .8MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
NA
NA


6MM Grease Fittings
METRIC GREASE FITTINGS
        6MM GREASE FITTINGS * 6MM GREASE FITTINGS * 6MM GREASE FITTINGS * 6MM GREASE FITTINGS * 6MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M6-75-1 6MM X .75MM / STRAIGHT
1
15.0mm
5.5mm
7mm
NA
NA
M6-75-B 6MM X .75MM / STRAIGHT (BRASS)
1
15.0mm
5.5mm
7mm
NA
NA
M6-75-1-SS 6MM X .75MM / STRAIGHT (STAINLESS)
1
15.0mm
5.5mm
7mm
NA
NA
M6-75-45 6MM X .75MM / 45 DEGREE
2
23.5mm
5.5mm
9mm
NA
NA
M6-75-90 6MM X .75MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
NA
NA
M6-1-AM 6MM X 1MM / STRAIGHT
1
13.5mm
4.6mm
7mm
2106
5175
M6-1-B 6MM X 1MM / STRAIGHT (BRASS)
1
15.0mm
5.5mm
7mm
NA
NA
M6-1-SS-AM 6MM X 1MM / STRAIGHT (STAINLESS)
1
13.2mm
5.2mm
7mm
N/A
N/A
M6-45-AM 6MM X 1MM / 45 DEGREE
2
22.6mm
5.5mm
9mm
2107
5176
M6-1-45-B 6MM X 1MM / 45 DEGREE (BRASS)
2
23.5mm
5.5mm
9mm
NA
NA
M6-45-SS-AM 6MM X 1MM / 45 DEGREE (STAINLESS)
2
22.6mm
5.5mm
9mm
N/A
N/A
M6-90-AM 6MM X 1MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
2108
5177
M6-1-90-B 6MM X 1MM / 90 DEGREE (BRASS)
3
18.0mm
5.5mm
9mm
NA
NA
M6-90-SS-AM 6MM X 1MM / 90 DEGREE (STAINLESS)
3
18.0mm
5.5mm
9mm
N/A
N/A


7MM Grease Fittings
METRIC GREASE FITTINGS
        7MM GREASE FITTINGS * 7MM GREASE FITTINGS * 7MM GREASE FITTINGS * 7MM GREASE FITTINGS * 7MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M7-1-1 7MM X 1MM / STRAIGHT
1
15.0mm
5.5mm
9mm
NA
NA
M7-1-45 7MM X 1MM / 45 DEGREE
2
23.5mm
5.5mm
9mm
NA
NA
M7-1-90 7MM X 1MM / 90 DEGREE
2
18.0mm
5.5mm
9mm
NA
NA


8MM Grease Fittings
METRIC GREASE FITTINGS
       8MM GREASE FITTINGS * 8MM GREASE FITTINGS * 8MM GREASE FITTINGS * 8MM GREASE FITTINGS * 8MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M8-75-1 8MM X .75MM / STRAIGHT
1
15.0mm
5.5mm
9mm
NA
NA
M8-75-45 8MM X .75MM / 45 DEGREE
2
23.5mm
5.5mm
9mm
NA
NA
M8-75-90 8MM X .75MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
NA
NA
M8-1-AM 8MM X 1MM / STRAIGHT
1
14.7mm
5.6mm
9mm
2103
5178
M8-1-B 8MM X 1MM / STRAIGHT (BRASS)
1
15.0mm
5.5mm
9mm
NA
NA
M8-1-SS-AM 8MM X 1MM / STRAIGHT (STAINLESS)
1
14.9mm
5.8mm
9mm
N/A
N/A
M8-45-AM 8MM X 1MM / 45 DEGREE
2
22.4mm
5.5mm
9mm
2104
5179
M8-1-45-B 8MM X 1MM / 45 DEGREE (BRASS)
2
23.5mm
5.5mm
9mm
NA
NA
M8-45-SS-AM 8MM X 1MM / 45 DEGREE (STAINLESS)
2
22.4mm
5.5mm
9mm
N/A
N/A
M8-1-67 8MM X 1MM / 67 DEGREE
2
20.5mm
5.5mm
9mm
NA
NA
M8-90-AM 8MM X 1MM / 90 DEGREE
3
17.8mm
5.5mm
9mm
2105
5180
M8-1-90-B 8MM X 1MM / 90 DEGREE (BRASS)
3
18.0mm
5.5mm
9mm
NA
NA
M8-90-SS-AM 8MM X 1MM / 90 DEGREE (STAINLESS)
3
17.8mm
5.5mm
9mm
N/A
N/A
M8-125-1 8MM X 1.25MM / STRAIGHT
1
15.0mm
5.5mm
9mm
NA
NA
M8-125-B 8MM X 1.25MM / STRAIGHT (BRASS)
1
15.0mm
5.5mm
9mm
NA
NA
M8-125-1-SS 8MM X 1.25MM / STRAIGHT (STAINLESS)
1
15.0mm
5.5mm
9mm
N/A
N/A
M8-125-45 8MM X 1.25MM / 45 DEGREE
2
23.5mm
5.5mm
9mm
NA
NA
M8-125-45-B 8MM X 1.25MM / 45 DEGREE (BRASS)
2
23.5mm
5.5mm
9mm
NA
NA
M8-125-45-SS 8MM X 1.25MM / 45 DEG.(STAINLESS)
2
23.5mm
5.5mm
9mm
N/A
N/A
M8-125-67 8MM X 1.25MM / 67 DEGREE
2
20.5mm
5.5mm
9mm
N/A
N/A
M8-125-90 8MM X 1.25MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
NA
NA
M8-125-90-B 8MM X 1.25MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
N/A
N/A
M8-125-90-SS 8MM X 1.25MM / 90 DEG.(STAINLESS)
3
18.0mm
5.5mm
9mm
N/A
N/A


10MM Grease Fittings
METRIC GREASE FITTINGS
   10MM GREASE FITTINGS * 10MM GREASE FITTINGS * 10MM GREASE FITTINGS * 10MM GREASE FITTINGS * 10MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M10-1-AM 10MM X 1MM / STRAIGHT
1
15.2mm
5.9mm
11mm
2109
5181
M10-1-B 10MM X 1MM / STRAIGHT (BRASS)
1
15.0mm
5.5mm
11mm
NA
NA
M10-1-SS-AM 10MM X 1MM / STRAIGHT (STAINLESS)
1
15.2mm
5.8mm
11mm
N/A
N/A
M10-45-AM 10MM X 1MM / 45 DEGREE
2
23.5mm
5.5mm
11mm
2110
5182
M10-1-45-B 10MM X 1MM / 45 DEGREE (BRASS)
2
25.0mm
5.5mm
11mm
NA
NA
M10-45-SS-AM 10MM X 1MM / 45 DEGREE (STAINLESS)
2
23.1mm
5.5mm
11mm
N/A
N/A
M10-90-AM 10MM X 1MM / 90 DEGREE
3
19.0mm
5.5mm
11mm
2111
5183
M10-1-90-B 10MM X 1MM / 90 DEGREE (BRASS)
3
20.0mm
5.5mm
11mm
NA
NA
M10-90-SS-AM 10MM X 1MM / 90 DEGREE (STAINLESS)
3
19.0mm
5.5mm
11mm
N/A
N/A
M10-125-1 10MM X 1.25MM / STRAIGHT
1
15.0mm
5.5mm
11mm
NA
NA
M10-125-45 10MM X 1.25MM / 45 DEGREE
2
25.0mm
5.5mm
11mm
NA
NA
M10-125-90 10MM X 1.25MM / 90 DEGREE
3
20.0mm
5.5mm
11mm
NA
NA
M10-15-1 10MM X 1.5MM / STRAIGHT
1
15.0mm
5.5mm
11mm
NA
NA
M10-15-45 10MM X 1.5MM / 45 DEGREE
2
25.0mm
5.5mm
11mm
NA
NA
M10-15-90 10MM X 1.5MM / 90 DEGREE
3
20.0mm
5.5mm
11mm
NA
NA


12MM Grease Fittings
METRIC GREASE FITTINGS
   12MM GREASE FITTINGS * 12MM GREASE FITTINGS * 12MM GREASE FITTINGS * 12MM GREASE FITTINGS * 12MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M12-1-1 12MM X 1MM / STRAIGHT
1
17.5mm
6.5mm
14mm
NA
NA
M12-1-90 12MM X 1MM / 90 DEGREE
3
22.0mm
6.5mm
14mm
NA
NA
M12-125-1 12MM X 1.25MM / STRAIGHT
1
17.5mm
6.5mm
14mm
NA
NA
M12-15-1 12MM X 1.5MM / STRAIGHT
1
17.5mm
6.5mm
14mm
NA
NA
M12-15-B 12MM X 1.5MM / STRAIGHT (BRASS)
1
17.5mm
6.5mm
14mm
NA
NA
M12-15-1-SS 12MM X 1.5MM / STRAIGHT (STAINLESS)
3
17.5mm
6.5mm
11mm
N/A
N/A
M12-15-45 12MM X 1.5MM / 45 DEGREE
2
22.5mm
6.5mm
14mm
NA
NA
M12-15-90 12MM X 1.5MM / 90 DEGREE
3
22.0mm
6.5mm
14mm
NA
NA
M12-175-1 12MM X 1.75MM / STRAIGHT
1
17.5mm
6.5mm
14mm
NA
NA
M12-175-90 12MM X 1.75MM / 90 DEGREE
3
22.0mm
6.5mm
14mm
NA
NA


16MM Grease Fittings
METRIC GREASE FITTINGS
   16MM GREASE FITTINGS * 16MM GREASE FITTINGS * 16MM GREASE FITTINGS * 16MM GREASE FITTINGS * 16MM GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M16-15-1 16MM X 1.5MM / STRAIGHT
1
18.0mm
7.0mm
17mm
NA
NA
M16-15-45 16MM X 1.5MM / 45 DEGREE
2
25.5mm
7.0mm
17mm
NA
NA


Metric Drive Type Grease Fittings

     METRIC DRIVE GREASE FITTINGS * METRIC DRIVE GREASE FITTINGS * METRIC DRIVE GREASE FITTINGS * METRIC DRIVE FITTINGS
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
K-M635 6.35 MM DRIVE TYPE
7
15mm
6.3mm
8mm
N/A
N/A
K-M476 4.76 MM DRIVE TYPE
7
15mm
6.3mm
8mm
N/A
N/A



Metric Standard Button Head Grease Fittings


METRIC BUTTON HEAD GREASE FITTINGS
        METRIC BUTTON HEAD GREASE FITTINGS * METRIC BUTTON HEAD GREASE FITTINGS * METRIC BUTTON HEAD GREASE FITTINGS
SAE Number
Grease Fitting Description
FIG
A
B
C
X
M6-1-CB 6MM X 1MM BUTTON HEAD FITTING
14
16.0mm
6mm
16mm
17mm
M6-1-CB-B 6MM X 1MM BUTTON HEAD FITTING (BRASS)
14
17.0mm
6.0mm
16.0mm
17mm
M6-1-CB-SS 6MM X 1MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M6-1-CBS 6MM X 1MM BUTTON HEAD FITTING
14
13.5mm
6mm
10mm
11mm
M8-1-CB 8MM X 1MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M8-1-CB-B 8MM X 1MM BUTTON HEAD FITTING (BRASS)
14
17.0mm
6.0mm
16.0mm
17mm
M8-1-CB-SS 8MM X 1MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M8-1-CBS 8MM X 1MM BUTTON HEAD FITTING
14
13.5mm
6mm
10mm
11mm
M8-125-CB 8MM X 1.25MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M8-125-CB-B 8MM X 1.25MM BUTTON HEAD FITTING (BRASS)
14
17.0mm
6.0mm
16.0mm
17mm
M8-125-CB-SS 8MM X 1.25MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M10-1-CB 10MM X 1MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M10-1-CB-SS 10MM X 1MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M10-1-CBS 10MM X 1MM BUTTON HEAD FITTING
14
13.5mm
6mm
10mm
11mm
M10-15-CB 10MM X 1.5MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M12-15-CB 12MM X 1.5MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M12-15-CB-SS 12MM X 1.5MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M12-175-CB 12MM X 1.75MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M12-175-CB-SS 12MM X 1.75MM (STAINLESS STEEL) BUTTON
14
17.0mm
6mm
16mm
17mm
M14-15-CB 14MM X 1.5MM BUTTON HEAD FITTING
14
17.0mm
6mm
16mm
17mm
M16-15-CB 16MM X 1.5MM BUTTON HEAD FITTING
14
18.0mm
7mm
16mm
17mm
M16-15-CBL-HP 16MM X 1.5MM HIGH PRESSURE FITTING
14
32.0mm
12mm
22mm
22mm



Metric Giant Button Head Grease Fittings


METRIC BUTTON HEAD GREASE FITTINGS
      METRIC GIANT BUTTON HEAD GREASE FITTINGS * METRIC GIANT BUTTON HEAD GREASE FITTINGS * METRIC GIANT BUTTON HEAD
SAE Number
Grease Fitting Description
FIG
A
B
C
X
M10-1-CBG 10MM X 1MM GIANT BUTTON HEAD FITTING
14
23.5mm
9.5mm
22mm
22mm
M16-15-CBG 16MM X 1.5 MM GIANT BUTTON HEAD FITIING
14
21.5mm
8.0mm
22mm
22mm
M16-15-CBG-B 16MM X 1.5 MM GIANT BUTTON HEAD (BRASS)
14
21.5mm
8.0mm
22mm
22mm
M16-15-CBG-SS 16MM X 1.5 MM GIANT BUTTON HEAD (STAINLESS)
14
21.5mm
8.0mm
22mm
22mm


6MM Thread Forming
6MM THREAD FORMING GREASE FITTINGS
           6MM THREAD FORMING GREASE FITTINGS  * 6MM THREAD FORMING GREASE FITTINGS  * 6MM THREAD FORMING FITTINGS
SAE Number
Grease Fitting Description
FIG
A
B
X
Alemite #
Lincoln #
M6-1-GM 6MM X 1MM / STRAIGHT
1
15.0mm
5.5mm
7mm
N/A
N/A
M6-45-GM 6MM X 1MM / 45 DEGREE
2
20.2mm
5.5mm
9mm
N/A
N/A
M6-90-GM 6MM X 1MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
N/A
N/A


8MM Thread Forming
8MM THREAD FORMING GREASE FITTINGS
           8MM THREAD FORMING GREASE FITTINGS  * 8MM THREAD FORMING GREASE FITTINGS  * 8MM THREAD FORMING FITTINGS
SAE Number
Grease Fitting Description
FIG
A
B
X
Alemite #
Lincoln #
M8-1-GM 8MM X 1MM / STRAIGHT
1
15.0mm
5.5mm
9mm
N/A
N/A
M8-45-GM 8MM X 1MM / 45 DEGREE
2
20.2mm
5.5mm
9mm
N/A
N/A
M8-90-GM 8MM X 1MM / 90 DEGREE
3
18.0mm
5.5mm
9mm
N/A
N/A


10MM Thread Forming
10MM THREAD FORMING GREASE FITTINGS
       10MM THREAD FORMING GREASE FITTINGS  * 10MM THREAD FORMING GREASE FITTINGS  * 10MM THREAD FORMING FITTINGS
SAE Number
Grease Fitting Description
FIG
A
B
X
Alemite #
Lincoln #
M10-1-GM 10MM X 1MM / STRAIGHT
1
15.0mm
5.5mm
11mm
N/A
N/A
M10-1-GML 10MM X 1MM / STRAIGHT
1
18.0mm
8.0mm
11mm
N/A
N/A
M10-45-GM 10MM X 1MM / 45 DEGREE
2
20.5mm
5.5mm
11mm
N/A
N/A
M10-90-GM 10MM X 1MM / 90 DEGREE
3
18.0mm
5.5mm
11mm
N/A
N/A

Metric Plugs
METRIC PLUG FITTINGS
    6MM PLUG FITTINGS  *  6MM PLUG FITTINGS  *  6MM PLUG FITTINGS  *  6MM PLUG FITTINGS  *  6MM PLUG FITTINGS  *  6MM PLUG
SAE Number
Grease Fitting Description
FIG.
A
B
X
Alemite
Lincoln
M6-1-P 6MM X 1MM PLUG
6
8.5mm
5.5mm
7mm
N/A
N/A
M6-1-GMP 6MM X 1MM THREAD FORMING PLUG
6
8.5mm
5.5mm
7mm
N/A
N/A
M8-1-P 8MM X 1MM PLUG
6
8.5mm
5.5mm
9mm
N/A
N/A
M8-1-GMP 8MM X 1MM THREAD FORMING PLUG
6
8.5mm
5.5mm
9mm
N/A
N/A
M10-1-P 10MM X 1MM PLUG
6
8.5mm
5.5mm
11mm
N/A
N/A
M10-1-GMP 10MM X 1MM THREAD FORMING PLUG
6
8.5mm
5.5mm
11mm
N/A
N/A



Metric Flush Type Grease Fittings


        METRIC FLUSH TYPE GREASE FITTINGS * METRIC FLUSH TYPE GREASE FITTINGS * METRIC FLUSH TYPE GREASE FITTINGS
SAE Number Description
FIG
A
B
X
M6-75-F 6MM X .75MM FLUSH TYPE
15
8.5mm
5.5mm
7mm
M6-1-F 6MM X 1MM FLUSH TYPE
15
8.5mm
5.5mm
7mm
M6-1-FB 6MM X 1MM / STRAIGHT (BRASS)
15
8.5mm
5.5mm
7mm
M6-1-FS 6MM X 1MM FLUSH TYPE (STAINLESS STEEL)
15
8.5mm
5.5mm
7mm
M6-1-45F 6MM X 1MM FLUSH TYPE / 45 DEGREE SQ. HEX
15
5.5mm
9mm
M6-1-90F 6MM X 1MM FLUSH TYPE / 90 DEGREE SQ. HEX
15
18.0mm
5.5mm
9mm
M8-1-F 8MM X 1MM FLUSH TYPE
15
9.5mm
6.5mm
9mm
M8-1-FB 8MM X 1MM / STRAIGHT (BRASS)
15
9.5mm
6.5mm
9mm
M8-125-F 8MM X 1.25MM FLUSH TYPE
15
9.5mm
6.5mm
9mm
M8-1-FS 8MM X 1MM FLUSH TYPE (STAINLESS STEEL)
15
9.5mm
6.5mm
9mm
M8-1-45F 8MM X 1MM FLUSH TYPE / 45 DEGREE SQ. HEX
15
-
5.5mm
9mm
M8-1-90F 8MM X 1MM FLUSH TYPE / 90 DEGREE SQ. HEX
15
18.0mm
5.5mm
9mm
M10-1-F 10MM X 1MM FLUSH TYPE
15
9.5mm
6.5mm
11mm
M10-1-FB 10MM X 1MM / STRAIGHT (BRASS)
15
9.5mm
6.5mm
11mm
M10-1-FS 10MM X 1MM FLUSH TYPE (STAINLESS STEEL)
15
9.5mm
6.5mm
11mm
M10-15-F 10MM X 1.5MM FLUSH TYPE
15
9.5mm
6.5mm
11mm
M10-1-45F 10MM X 1MM FLUSH TYPE / 45 DEGREE SQ. HEX
15
-
5.5mm
11mm
M10-1-90F 10MM X 1MM FLUSH TYPE / 90 DEGREE SQ. HEX
15
18.0mm
5.5mm
11mm
M12-15-F 12MM X 1.5MM FLUSH TYPE
15
14.0mm
9.5mm
14mm
M12-15-FB 12MM X 1.5MM / STRAIGHT (BRASS)
15
14.0mm
9.5mm
14mm



Metric Thread Forming Flush Type Grease Fittings


METRIC THREAD FORMING FLUSH TYPE GREASE FITTINGS
            METRIC THREAD FORMING FLUSH TYPE GREASE FITTINGS   *    METRIC THREAD FORMING FLUSH TYPE GREASE FITTINGS
SAE Number Description
FIG
A
B
X
M6-1-GMF 6MM X 1MM THREAD FORMING FLUSH TYPE
6
8.5mm
5.5mm
7mm
M8-1-GMF 8MM X 1MM THREAD FORMING FLUSH TYPE
6
8.5mm
5.5mm
9mm
M10-1-GMF 10MM X 1MM THREAD FORMING FLUSH TYPE
6
8.5mm
5.5mm
11mm


Back To Top

Grease Fittings / Zerk Fittings Home Page


SAE Products 1709 Husted Rd. (#4) Conway, SC 29526 - Phone:1-800-588-8480 Fax: 1-843-349-0738

View information in other languages:

Product Quick Links:
