Special Thread Grease Fittings




Special Thread Grease Fittings are available with special threads and sizes for special lubrication requirements.  Special thread grease fittings are designed to fit into corresponding straight threaded holes.


Special Thread Grease Fittings
SPECIAL THREAD GREASE FITTINGS
               SPECIAL THREAD GREASE FITTINGS  *  SPECIAL THREAD GREASE FITTINGS  *  SPECIAL THREAD GREASE FITTINGS
SAE Number Grease Fitting Description

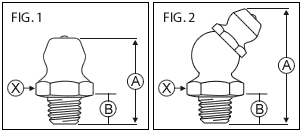

FIG
A
B
X
Alemite #
Lincoln #

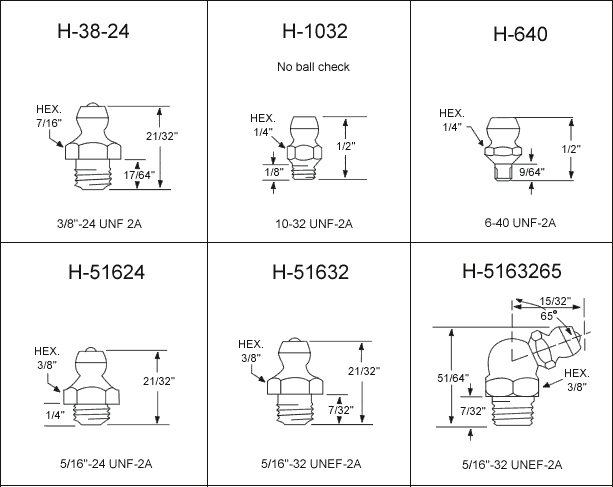

H-38-24 3/8"-24 UNF-2A THREAD STR.
1
21/32"
17/64"
7/16"
N/A
N/A
H-1032 10-32 UNF-2A THREAD STR.
1
1/2"
1/8"
1/4"
3016
N/A
H-640 6-40 UNF-2A STRAIGHT
1
1/2"
9/64"
1/4"
3018
N/A
H-51624 5/16"-24 UNF-2A STRAIGHT
1
21/32"
1/4"
3/8"
1711-B
5061
H-51632 5/16"-32 UNEF-2A STRAIGHT
1
21/32"
7/32"
3/8"
1631-B
N/A
H-5163265 5/16"-32 UNEF-2A, 65 DEGREE
2
51/64"
7/32"
3/8"
1648-B1
N/A

Speical Thread Grease Fittings
