1/4″-28 UNF-2A Grease Fitting / Zerk Fitting
1/4″-28 UNF-2A STRAIGHT GREASE FITTING
Description

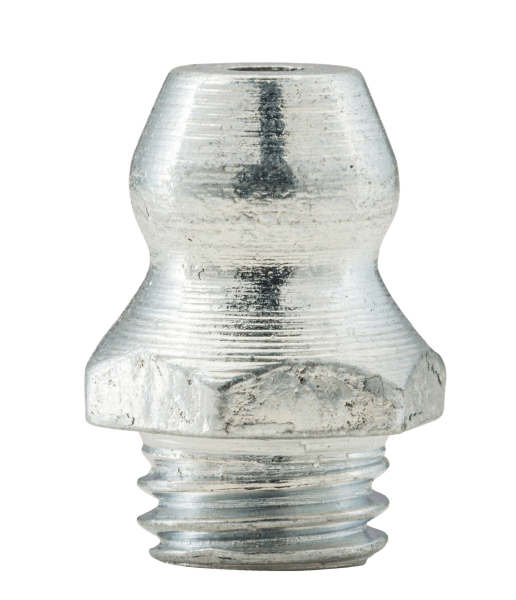

SAE Products 1/4″-28 UNF-2A grease fittings are commonly referred to as 1/4″-28 UNF-2A zerk fittings or 1/4″-28 straight thread grease fittings. Below is an image and drawing of SAE Products 1/4″-28 UNF-2A grease fitting. For more information call us toll free at 1-800-588-8480.
Specifications
| Product Type | Straight |
|---|---|
| Thread | 1/4"-28 UNF-2A |
| Figure | 1 |
| Overall Length (in) - A | 7/16 |
| Shank Length (in) - B | 1/8 |
| Hex Size (in) - X | 5/16 |
| Alemite Part Number | 369609 |
Resources
- How Do I Size Grease Fittings?
- Alemite & Alemite Equivalent Grease Fittings Available
- Grease Fitting or Zerk or Alemite Fitting or Grease Nipple?
- Grease Fitting Sizes and Certifications
- Grease Fitting Symbols & Thread Reference Chart
- Understanding Grease Fitting Specifications – Threads, Angles, Materials, and More
- Understanding Grease Fitting Specifications (pdf)
