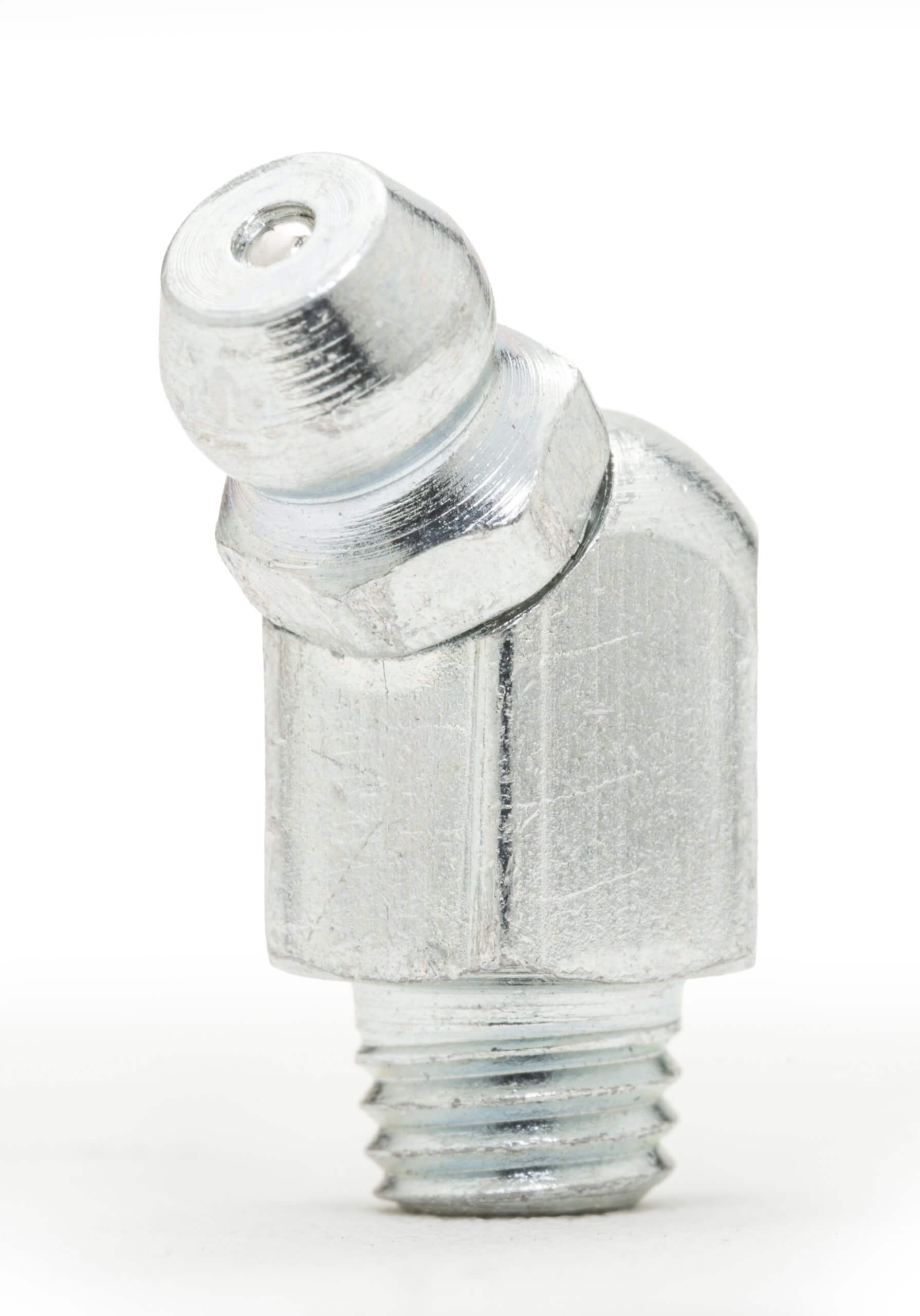

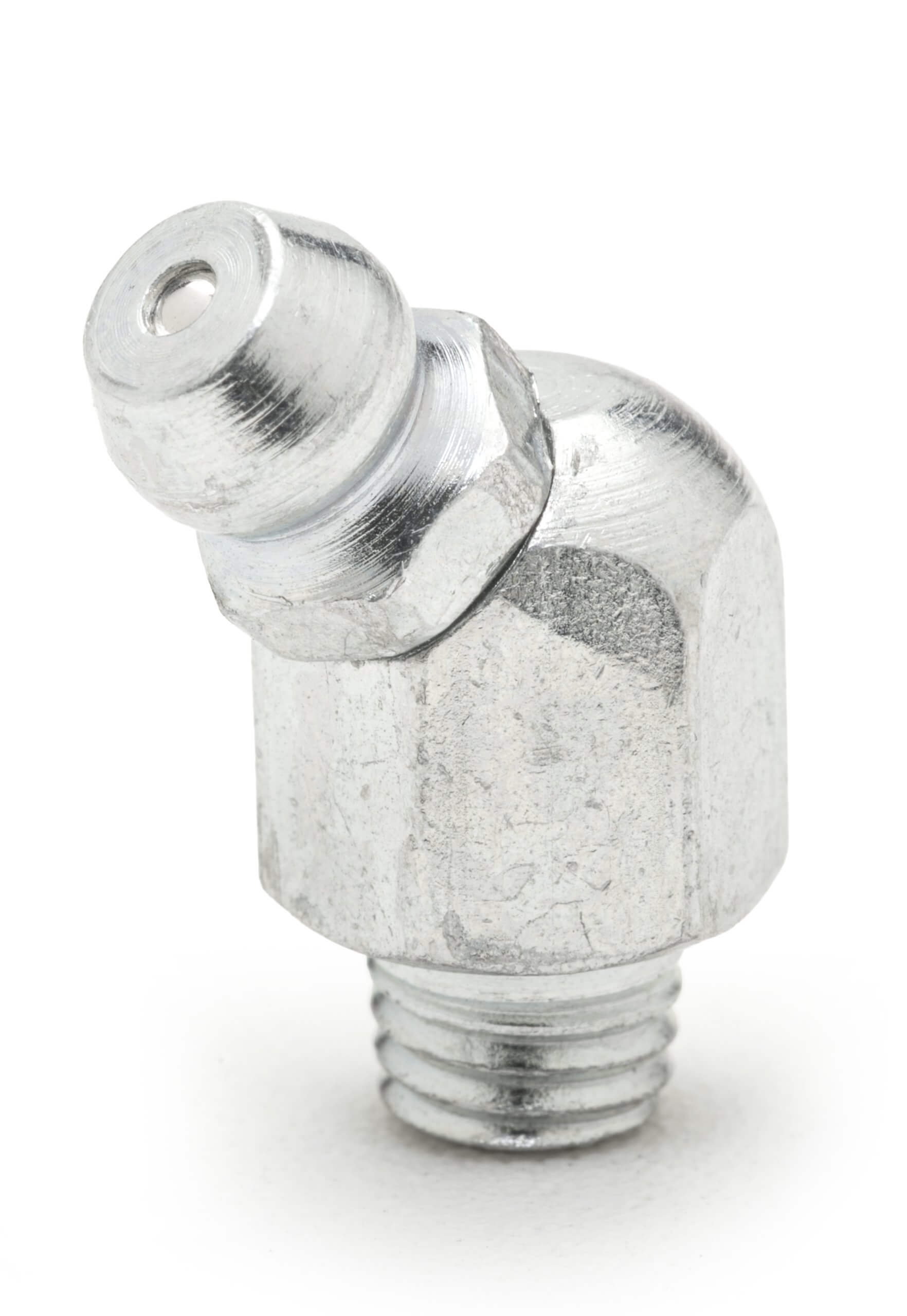

1/4″-28 45 Degree TRIVALENT Special Taper Thread Grease Fitting
1/4-28, 45 DEG. SPECIAL TAPER DRIVE THREAD.TRIVALENT CLEAR
Description
SAE Products 1/4″-28 45 Degree TRIVALENT Special Taper Thread Grease Fittings are commonly referred to as 1/4″-28 45 Degree TRIVALENT Special Taper Thread Zerk Fittings. For more information call us toll free at 1-800-588-8480.
Specifications
| Product Type | 45° |
|---|---|
| Thread | 1/4"-28 Special Taper |
| Figure | 2 |
| Overall Length (in) - A | 13/16 |
| Shank Length (in) - B | 13/64 |
| Hex Size (in) - X | 3/8 |
| Alemite Part Number | 3053-B |
| Lincoln Part Number | N/A |
