1/8″ NPTF Button Head Grease Fitting / Zerk Fittings
1/8″-NPTF GREASE FITTING
Description

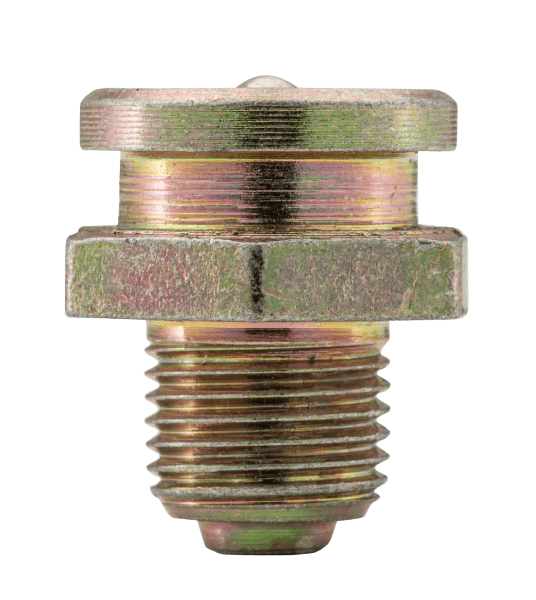

SAE Products 1/8″ NPTF standard button head grease fittings are commonly referred to as 1/8″ NPTF button head zerk fittings. Below is an image and drawing of SAE Products H-200-CB button head fitting. For more information on our button head grease fittings call us toll free at 1-800-588-8480.
Specifications
| Product Type | Straight |
|---|---|
| Thread | 1/8"-NPTF |
| Figure | 14 |
| Overall Length (in) - A | 3/4 |
| Shank Length (in) - B | 23/64 |
| Hex Size (in) - X | 5/8 |
| Alemite Part Number | A1184 |
| Lincoln Part Number | 5700/5701 |
